Technical Specs

• 3 programmable height presets
• Weight capacity: 100 lb. // 45.36kg
• Travel: 25.6" ± 0.4" // 650mm ± 10mm
• Min Height: 34" ± 0.25" // 866mm ± 7mm
• Max height: 59.7" ± 0.35" // 1516mm ± 8mm
• Speed: 1.4" per second // 35mm per second
• Power Cord Length: 117” //  2980mm
• Powder coated finish on all metal components
• Assembly Instructions

Compatibility

Bike Lift Column

• Remco Tools Base Plate
• Park Tool Repair Stand Base, 130

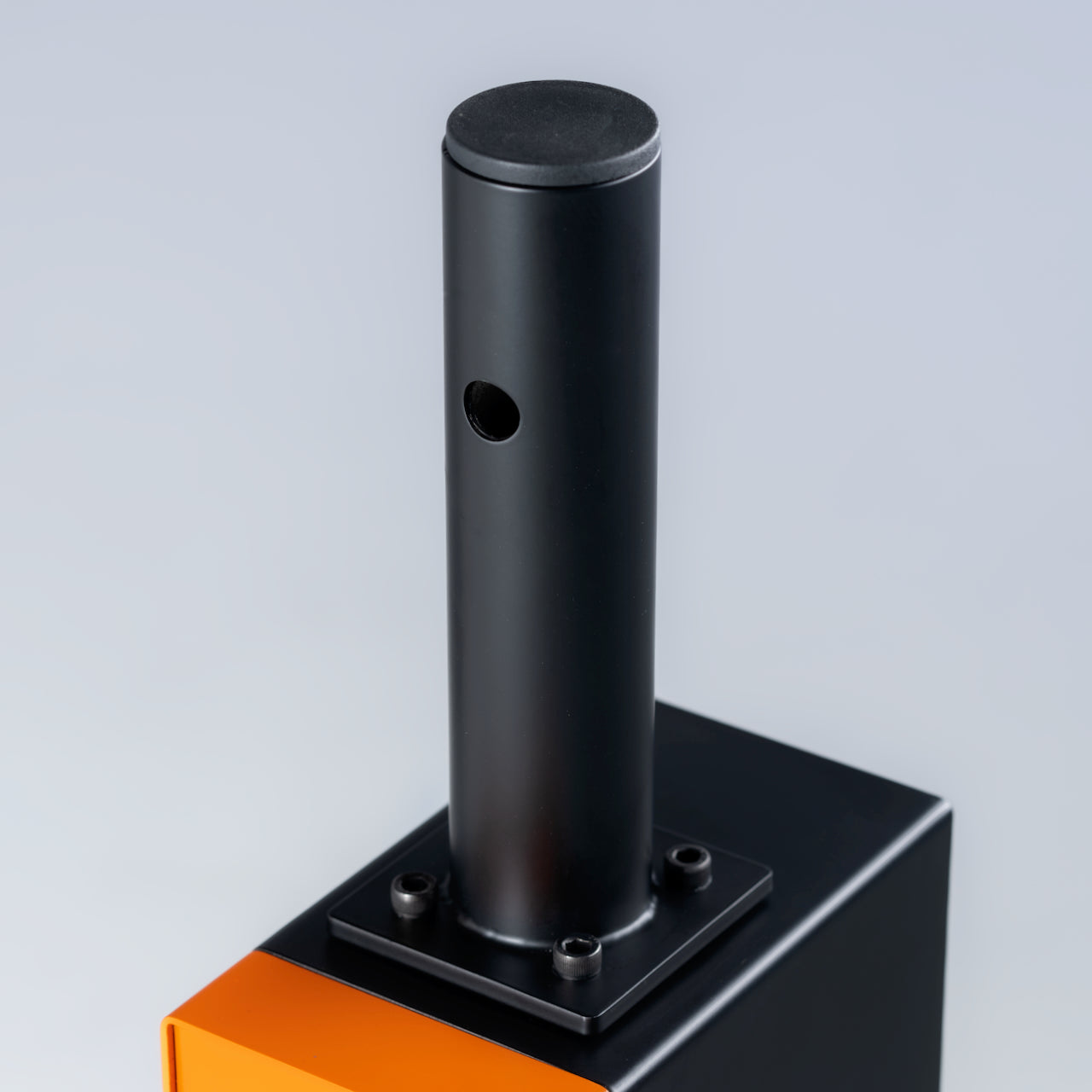

Chuck Adapter

• Remco Tools 2" Chuck
• Park Horizontal Tube, 124A included with:
• Park Deluxe Bench Mount Repair Stand, PRS-4.2-1 and PRS-4.2-2
• Park Deluxe Single Arm Repair Stand, PRS-3.3-1, and PRS-3.3-2
• Park Deluxe Wall Mount Repair Stand, PRS-4W-1 and PRS-4W-1

2" Clamp Chuck

• Park Professional Adjustable Linkage Clamp, 100-3C
• Park Professional Micro-Adjust Clamp, 100-3D
• Feedback Sports Pro Elite Commercial Clamp, 16022
• EVT Right Arm Repair Clamp

Shipping Details

• Carton Weight: 26.7 lb // 12.1 kg
• Carton Dimensions: 31 x 10.5 x 7” // 787 x 267 x 178mm

Carton Contents

• Lifting Column
• Clamp or Chuck Adapter
• Assembly Instructions
• Hardware
